SPECIALITY POWDER COATING

Home / SPECIALITY POWDER COATING

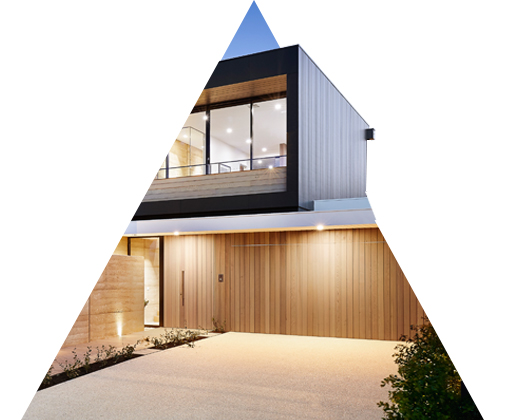

WOOD FINISH POWDER COATING

Wood Finish Powder Coating is based on the Heat Transfer and Sublimation Technology. Through this Technology we can get an exact wood effect on metal with all other advantages of Powder Coating such as Durability, Chemical Resistance and Mechanical Property.

We also can get various finishes such as marble, granite, wood grain, pictures and fancies.

It’s available in a wide range of colors and gloss levels.

AVAILABLE IN

Polyurethane
Super Durable
Pure Polyester
Epoxy-Polyester

Applications

Ceiling
Furniture
Door frames
Facades
Aluminium Extrusion

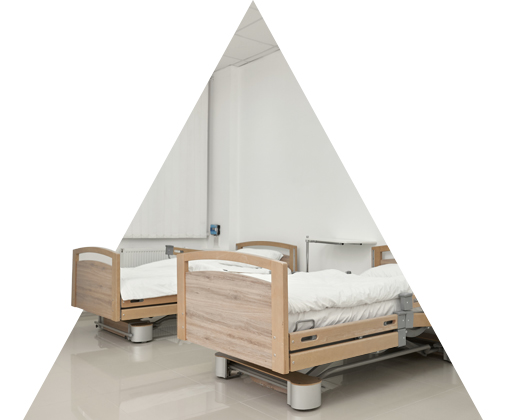

ANTIMICROBIAL POWDER COATING

Hygiene Coating is one of the most growing segments and after COVID-19 pandemic it’s booming. ANTIMICROBIAL COATING which provides protection from bacterias, fungi and microbes. ANTIMICROBIAL COATING can save a huge amount of money by stopping microbes from spreading.

VIJAY COAT manufactures Antimicrobial Powder Coating according to JIS Z 2801:2010 which protects surface from Staphylococcus Eurosis ATCC 6538, E-Coli ATCC 8739. This coating is completely environmentally friendly as it does not have any heavy metals like lead, silver.

AVAILABLE IN

Epoxy-Polyester (Indoor Application)
Pure Polyester (Outdoor Application)

Applications

Hospital Furniture
Medical Equipments
Children Playing Equipments
Food Processing Equipments
Hand Reels for Staircase
Bathroom and Kitchenware

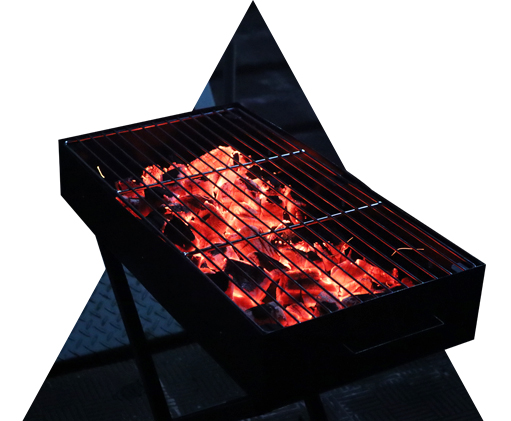

HEAT RESISTANT/ FLAME RETARDANT POWDER COATING

HEAT RESISTANT COATING provides excellent thermal insulation to the substrate and it will not delaminate/pull off when it exposes to the high temperature. After the 9/11 attack HEAT RESISTANCE POWDER COATING importance increased in architectural coating.

VIJAY COAT manufactures a wide range of HEAT RESISTANCE products which sustain up to 250 °C for a variety of applications.

Applications

Automobile Exhaust Systems
Chimney
Furnaces
Automobile internal Engine Parts
Kitchenware like Barbeque, Fry Pan
Tanks
FR Motors and industrial Equipment

Flame Retardant Powder Coating

VIJAY COAT has developed flame retardant products which passes UL-94 test with V-0 rating.

Flammability Test
Flammability Test of product is according to A
STM D 653-91.

Average Time of Burning- Less than 5 seconds (ATB)
Average Extent of Burning- Less than 5 mm (ATB)

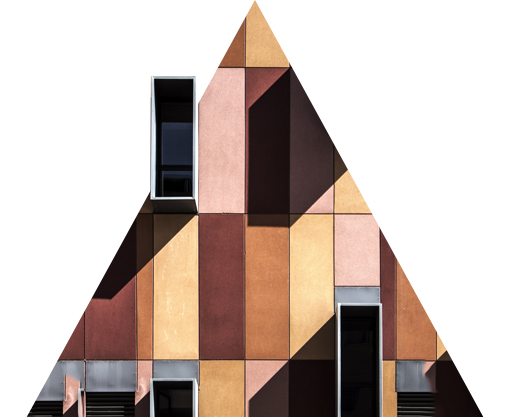

LOW BAKE/FAST CUURE POWDER COATING

As carbon emission is increasing day by day it’s necessary to develop more greener products. Powder Coating is one of the greener products in the coating industry but one of the drawbacks is it requires high temperature for curing. VIJAY COAT has come up with a new & innovative solution of Low bake/Fast Cure Powder Coating.

For Low bake Products it requires 165-170 °C temperature for 10 minutes. For Fast cure Products curing time is 5 minutes for 200 °C.

Advantages

Reduces Energy Requirement
Increases Production Cycles
Good mechanical & Chemical Properties

Products Chemistry

Pure Epoxy
Epoxy-Polyester
Pure Polyester

Finishes Available in

Epoxy Polyester: Semi-Glossy, Glossy.
Pure Epoxy: Semi Glossy.
Pure Polyester: Semi Glossy, Glossy Finish.

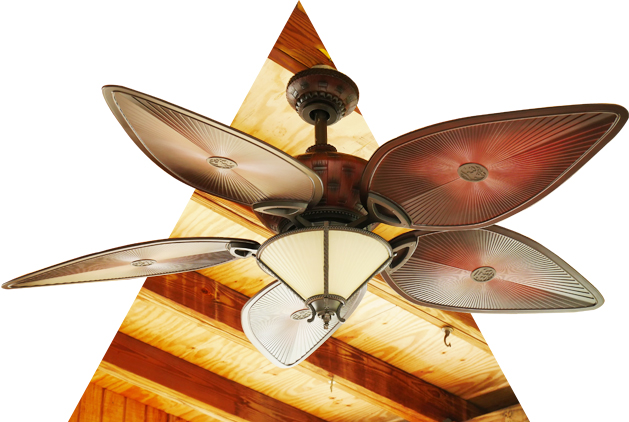

ANTI-GRAFFITI POWDER COATING

Maintenance and cleaning cost is one of the major costs for the operation. VIJAY COAT has developed anti- graffiti powder coating which helps to remove graffiti as well as it has easy to clean properties.

PROPERTIES

Easy to clean
Stain Resistance
Good Chemical Resistance
Good mechanical Properties

Applications CHEMISTRY

Polyurethane
Hybrid (Epoxy-Polyester)

Applications

Industrial Equipments
Sports Equipment
Bicycle
Fan blades

Products are available in a wide range of colours.

Minimum order qty would be 600 kg.

HOT WATER/HOT OIL RESISTANT POWDER COATING

VIJAY COAT has developed SCOR range powders which provide superior resistance specially from severe environmental conditions with particular reference to the areas where hot water resistance and hot oil resistance is required. SCOR range epoxy powder is specially developed and have particular gel time and Melting Point.

We have special grade powder coating which also sustain -40°C temperature, which uses in industrial refrigeration systems.

Properties

High resistance to Oil and Water
High resistance against corrosion
Excellent Chemical Properties
Superior hardness
Excellent resistance to wear & tear

Area of Applications

Automobile ancillaries
D.G Set
Boiler
Electric Geyser

Available in Blue-Grey shade.

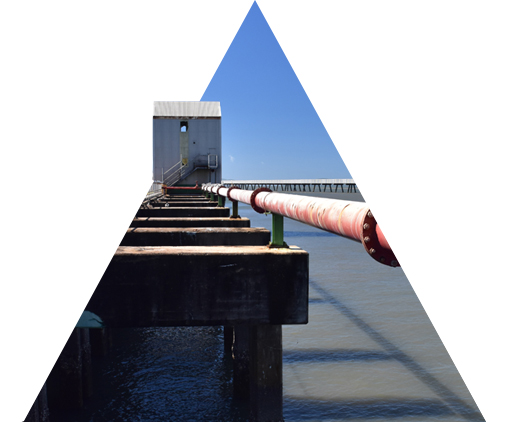

High Corrosion Resistance Powder Coating Systems (C4, C5 I & C5 M Class)

VIJAY COAT has developed speciality 2-coat as well as 3-coat systems for the C5 I, C5 & C4 M class of corrosion environment. These systems are recommended for higher corrosivity environment like In-shore area of medium salinity, industrial areas.

Applications

Corrosive Environment
Marine Environment
Outdoor Machineries
Export Consignment

For 2- Coat Systems

Primer Coat
Top Coat

For 3- Coat Systems

Primer Coat
Barrier Coat
Top Coat

For these systems Shot Blasting/Pretreatment is necessary.

These Systems may pass 1500 hr Salt-Spray Test according to ASTM B-117 and may pass humidity test for 1000 hr according to ASTM B-2247.

It will pass 20 MEK double rub..

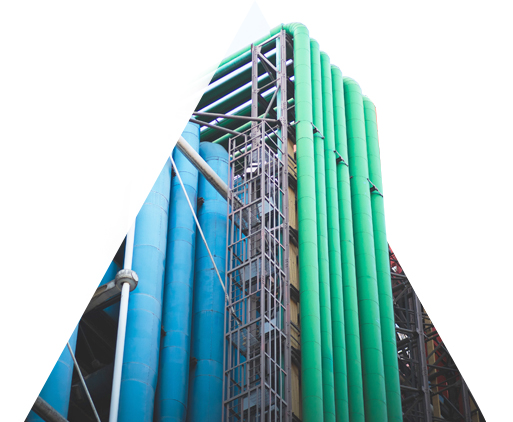

Food Grade Powder Coating

There are different coatings are used in food industry. VIJAY COAT has developed coating which passes 21 CFR 175-300 of US-FDA standard. This coating has lower migration rate compare to any other coating.

Applications

Water Pipelines
Ancillaries for food industry
Machineries in food industry
Utensils

Systems

Pure Epoxy
Epoxy Polyester- Hybrid

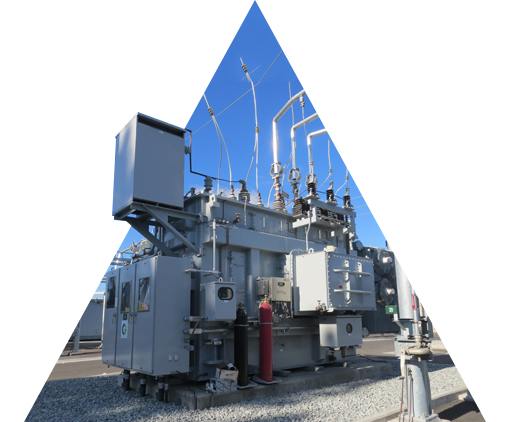

Electrical Insulation grade Powder Coating

VIJAY COAT has developed special electrical insulation grade powder coating which withstand high electrical stresses and can be applied to metal components of all types. It can resist high break down voltage and low dielectric strength and Properties

Electrical Strength of the Product is tested according to IS 100026(Pt.2) 1999 & Electrical strength of the product is 57.6 KV/mm at 27° C in air.

Provides insulation Properties
Excellent Moisture Resistance
Excellent Wear & Tear Resistance
Excellent surface hardness

Applications

Capacitor
Electrical bus-bar
Coil impregnation
Core Insulation
Encapsulation of electrical componenets

Appropriate pretreatment is required before coating.

Substrate

Aluminum
Copper
Steel

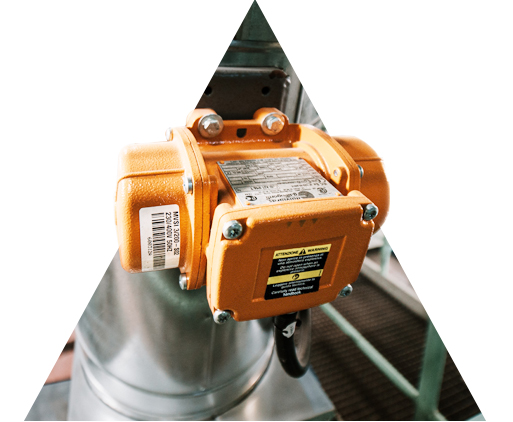

Thin Film Powder Coating

Generally Powder Coating requires minimum 55-60µ of thickness. So compare to conventional liquid coating overall consumption is also high. As powder coating material is costly compare to conventional coating it increases the overall cost. Thus VIJAY COAT has developed Thin Film Coating which gives excellent finish even at 35-45 µ. This coating is designed at particular particle size distribution to give excellent finish even at low DFT (Dry Film Thickness).

Advantages

Low Powder Consumption
Reduces overall cost of operation
Excellent Finish
Excellent Mechanical Properties

Available in

Hybrid (Epoxy-Polyester)
Pure Polyester

Available in all standard RAL colors. Minimum qty required is 500 Kg.
